CompEx Ex11 Ex Mechanical and Flange Integrity Core Competence Certification
ExVeritas is now providing a significantly updated CompEx Ex 11 Course that covers the new ‘Ex h’ requirements with a new updated exam and a new pipe integrity practical assessment to prevent against ‘loss of containment’ of flammable materials.
CompEx Ex11 has been created for mechanical engineers and fitters to gain a qualification in explosion safety to International Standards. ATEX (DSEAR) requires users to identify all possible ignition sources that could arise in hazardous areas. The identification of these ignition sources includes non-electrical (mechanical) items of equipment (in addition to electrical equipment covered by Ex01-04). The safety measures for non-electrical equipment used in hazardous areas not only include the design (and possible certification) of equipment but also the aspects required for safe selection, installation, maintenance, inspection and repair. Non-Electrical Explosion Safety has now also gone ‘international’ with the publication of IEC non-electrical equipment standards for explosive atmospheres and IECEx certification of such equipment.
The CompEx Ex11 covers both ATEX (European) and International (IEC) requirements as ExVeritas are a Notified Certification Body for both ATEX and IECEx non-electrical equipment and are verified and accredited specialists in this field.
CompEx Ex11 Agenda
- Hazardous areas overview
- Ignition sources of gas and dust
- Introduction to Area classification
- Categories, EPLs & Marking
- Equipment for use in hazardous areas
- Repairs & Modifications
- Requirements for ATEX and IECEx non-electrical equipment and assemblies
- EN1127-1 and identifying ignition hazards
- Failure examples for ATEX and IECEx Non-Electrical
- Performing ignition risk assessments (worked examples)
- ISO 80079-36/37 overview and the relationship with IEC60079-0 (Ex h)
- Concepts Ex d, p, c, k. b
- Selection and use of gaskets, flanges, bolts and pipe integrity
Delivery will be a combination of classroom tuition / and practical in the workshop.
Each candidate is required to demonstrate competence through a series of practical assessments and multi-choice question exam.
In addition to close and detailed Ex mechanical inspections on a mechanical assembly, a practical installation element is assessed based on a flange integrity assembly.

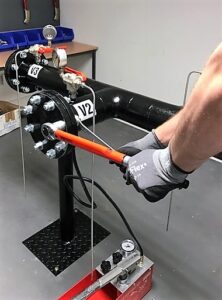

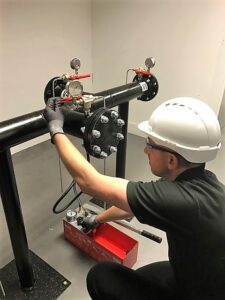

The flange integrity practical consists of:
- Visual inspection, measurement and selection of appropriate parts
- Flange assembly, blanking of flange.
- Pressure Test, assessment and depressurisation
- Safe Breaking of a Flange Joint
Assessment of Competence
90-minute exam (multiple choice)
90-minute exam on a close and detailed inspection on a mechanical pump rig (use of tools/locking out/fault identification assessment)

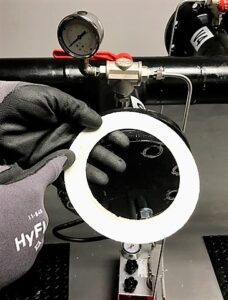

30-minute flange integrity practical. Selection and fitting of appropriate gaskets, bolts and flange blanks, pressure testing and safe removal.
Safety boots/shoes will be required, all other protective equipment and tools are provided
Who should attend CompEx Ex11?
CompEx EX11 is suitable for all personnel who may be required to break and isolate pipes to install or maintain Ex equipment such as pumps etc., and personal who may need to select, install or maintain Ex non-electrical equipment.
Designers of ATEX or IECEx equipment (products) should consider the Ex h Designers Course (contains no practical assessment)
2022 Course Dates
- Wrexham UK: 27th – 29th September, 8th – 10th November
2023 Course Dates
- Wrexham UK: 24th – 26th January, 21st – 23rd March, 23rd – 25th May, 18th – 20th July, 19th – 21st September, 21st – 23rd November.
09:00 to 16:30 Course duration and times may vary depending on delegate numbers. Individual delegate finishing time will depend on the length of time taken for assessment.
Course Cost & Booking
The CompEx Ex11 Course is a full 3-day course with lunch and refreshments provided, it costs £700 GBP* + VAT per delegate and can be booked on credit card or via a company purchase order.
*From 1st April 2019, Compex have introduced the CompEx ID card as mandatory for Modules Ex01-Ex06, Ex11, Ex12, Ex14. In line with CompEx fee terms £25.00 is charged in addition to the course cost for the CompEx ID Card.
Bookings can be taken by completing the on-line form below.
Why CompEx Ex11 Mechanical at ExVeritas?
The only training ExVeritas do is Hazardous Area Training – We are UKAS accredited experts in this field, and as such have the leading instructors and facilities to ensure you will receive the very best instruction and assessment available anywhere. Our Ex01-04 inspection and installation rigs comply with the very latest EN60079-14 and CompEx requirements and our course covers both the core CompEx requirements and additional new requirements from EN60079-14/17.
ExVeritas have a vast experience of mechanical risk assessment, failure mode analysis, SIL and safety systems and mechanical engineering safety. We have provided such services to some of the largest global oil tool and assembly manufacturers over the last 20 years, and provide UKAS accredited ATEX Notified Body non-electrical certification.
We are practitioners in Explosive Atmospheres installation, inspection and certification. We are an ATEX Notified Body and an IECEx Certification Body- We have well over 200 years experience in this field at our training centre and our four specialist CompEx instructors (we don’t bring in outside contractors to teach our courses, we only use our own staff who are industry experts and active practitioners with over 20 years experience each).
ExVeritas uses an electronic cloud-based e-learning system called ‘Learn Ex,’ once registered candidates can have immediate access to course notes which are updated electronically. Simply visit https://www.exveritas.com/learnex-online/ for further details about the benefits of LearnEx.
We have a comfortable air-conditioned lecture room with HD projectors and audio and up-to-date practical facilities mirroring the requirements of the latest editions of the Standards. We offer hot and/or cold food at lunchtimes and complimentary hot drinks, snacks and Wi-Fi throughout your visit
